Shor ‘T’
Tare weight: 360kg
G.V.M.: 500 kg
Payload: 140kg
Towball height: 465mm
Recommended tow vehicle: from 1L
Tow vehicle tare: 1000 kg+
Wheel track: 1535mm
Overrun brakes: no
Wheel sizes: 165-13R
Towbar nose weight: 40-60kg
Solid beam axle leaf springs: 6 blade
Body width: 1700mm
Body overall width closed: 1800mm
Body length closed: 2200mm
Overall height closed: 1470mm
Overall length closed incl. towbar: 3180mm
Tent
Tent: 100% cotton waterproof canvas
Deluxe roof & weather skirt: 3400×2100
Extras
Rally awning with all poles and elbows: 3400×1700
Shade cloth wall, no mudband: POA
Plain wall use as doorway: POA
Window wall: POA
Deluxe wall: POA
Ground sheet 2,4m, 4,0m & 5,5m: POA
Multi-room with built in ground sheet: POA – 2000×1700
Optional window in trailer tent: POA
Extra half zips (each): POA
Hammock shelf: POA
Rubber stone protector: POA
Fold-out kitchen: POA
Cupboard with crockery: POA
Fold up table: POA
12v system, 2 int lights, 1 ext light, battery and charger: POA
Fitted electrics: all 220v, 10m cable, inletbox, blue plug: POA
Double 15amp wall socket, waterproof multiplug with lid: POA
10 metre extension cable (if fitted electrics is not taken): Standard
Jockey wheel, fridge 130l/220v, mattress: Standard
Clothing cupboard, fire extinguisher: Standard
Fold-out step, galvanized chassis: Standard
Spare wheel 165-13r white rim: POA
Spare wheel 195-r14c (lt) white rim: POA
Aluminium mags each: POA
Bunk cushion: POA
Washing line: POA
Peg box: POA
Large cutlery bag: POA
Courier charges for registration papers if used: POA
Shor ‘T’ LT
Tare weight: 380kg
G.V.M.: 600 kg
Payload: 220kg
Towball height: 505mm
Recommended tow vehicle: from 1.4 L
Tow vehicle tare: 1200 kg
Wheel track: 1535mm
Overrun brakes: no
Wheel sizes: 195-R14C
Towbar nose weight: 40-60kg
Solid beam axle leaf springs: 6 blade
Body width: 1700mm
Body overall width closed: 1800mm
Body length closed: 2200mm
Overall height closed: 1510mm
Overall length closed incl. towbar: 3180mm
Tent
Tent: 100% cotton waterproof canvas
Deluxe roof & weather skirt: 3400×2100
Extras
Rally awning with all poles and elbows: 3400×1700
Shade cloth wall, no mudband: POA
Plain wall use as doorway: POA
Window wall: POA
Deluxe wall: POA
Ground sheet 2,4m, 4,0m & 5,5m: POA
Multi-room with built in ground sheet: POA – 2000×1700
Optional window in trailer tent: POA
Extra half zips (each): POA
Hammock shelf: POA
Rubber stone protector: POA
Fold-out kitchen: POA
Cupboard with crockery: POA
Fold up table: POA
12v system, 2 int lights, 1 ext light, battery and charger: POA
Fitted electrics: all 220v, 10m cable, inletbox, blue plug: POA
Double 15amp wall socket, waterproof multiplug with lid: POA
10 metre extension cable (if fitted electrics is not taken): Standard
Jockey wheel, fridge 130l/220v, mattress: Standard
Clothing cupboard, fire extinguisher: Standard
Fold-out step, galvanized chassis: Standard
Spare wheel 165-13r white rim: POA
Spare wheel 195-r14c (lt) white rim: POA
Aluminium mags each: POA
Bunk cushion: POA
Washing line: POA
Peg box: POA
Large cutlery bag: POA
Courier charges for registration papers if used: POA

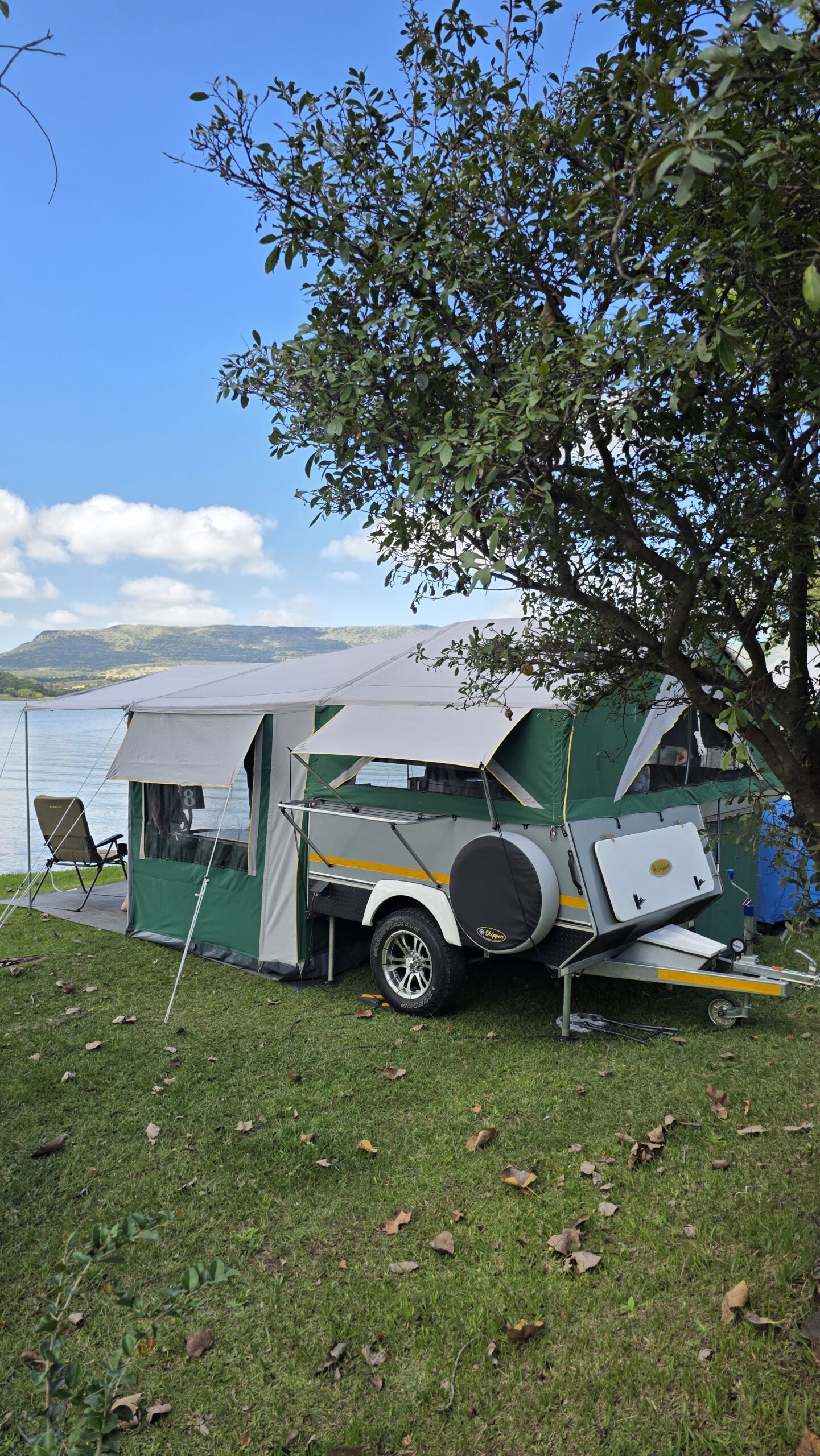

Shor ‘T’ Max
Tare weight: 380 kg
G.V.M.: 600 kg
Payload: 220 kg
Towball height: 505 mm
Recommended tow vehicle: from 1.4L
Tow vehicle tare: 1200 kg
Wheel track: 1535 mm
Overrun brakes: no
Wheel sizes: 195-R14C
Towbar nose weight: 40-60 kg
Solid beam axle leaf springs: 6 blade
Body width: 1700 mm
Body overall width closed: 1800 mm
Body length closed: 2200 mm
Overall height closed: 1510 mm
Overall length closed incl. towbar: 3180 mm
Tent
Tent: 100% cotton waterproof canvas
Deluxe roof & weather skirt: 3400×2100
Extras
Rally awning with all poles and elbows: Standard
Shade cloth wall, no mudband: POA
Plain wall use as doorway: STD x 1
Window wall: STD x 1
Deluxe wall: STD x 2
Ground sheet: 4m STD
Multi-room with built in ground sheet: POA
Optional window in trailer tent: STD
Extra half zips (each): POA
Hammock shelf: STD
Rubber stone protector: STD
Fold-out kitchen: STD
Cupboard with crockery: STD
Fold up table: STD
12v system, 2 int lights, 1 ext light, battery and charger: STD
Fitted electrics: all 220v, 10m cable, inletbox, blue plug:
Double 15amp wall socket, waterproof multiplug with lid: STD
10 metre extension cable (if fitted electrics is not taken): STD
Jockey wheel, fridge 130l/220v, mattress: SSTD
Clothing cupboard, fire extinguisher: STD
Fold-out step, galvanized chassis: STD
Spare wheel 165-13r white rim: N/A
Spare wheel 195-r14c (lt) white rim: STD
Aluminium mags each: STD
Bunk cushion: STD
Washing line: STD
Peg box: STD
Large cutlery bag: STD
Courier charges for registration papers if used: POA
Shor ‘T’ Layout
Floorplan
A- Double Bed on lid
D- Cupboard
E- Fridge
J- Rally Awning
N- Deluxe Awning
O- Dinette Bench/ Storage Bunk
P- Kiddies bed/Dinette area
Q- Fold Up Step
R- Crockery Cupboard on Door
S- Fold Out Kitchen
Vloerplan
A- Dubbel Bed op Deksel
D- Kas
E- Yskas
J- Rally Luifel
N- Deluxe Luifel
O- Eetbank / stoorbank
P- Kinderbed / eetarea
Q- Op Vou Trap
R- Breekware in Kas aan deur
S- Uit Vou Kombuis
